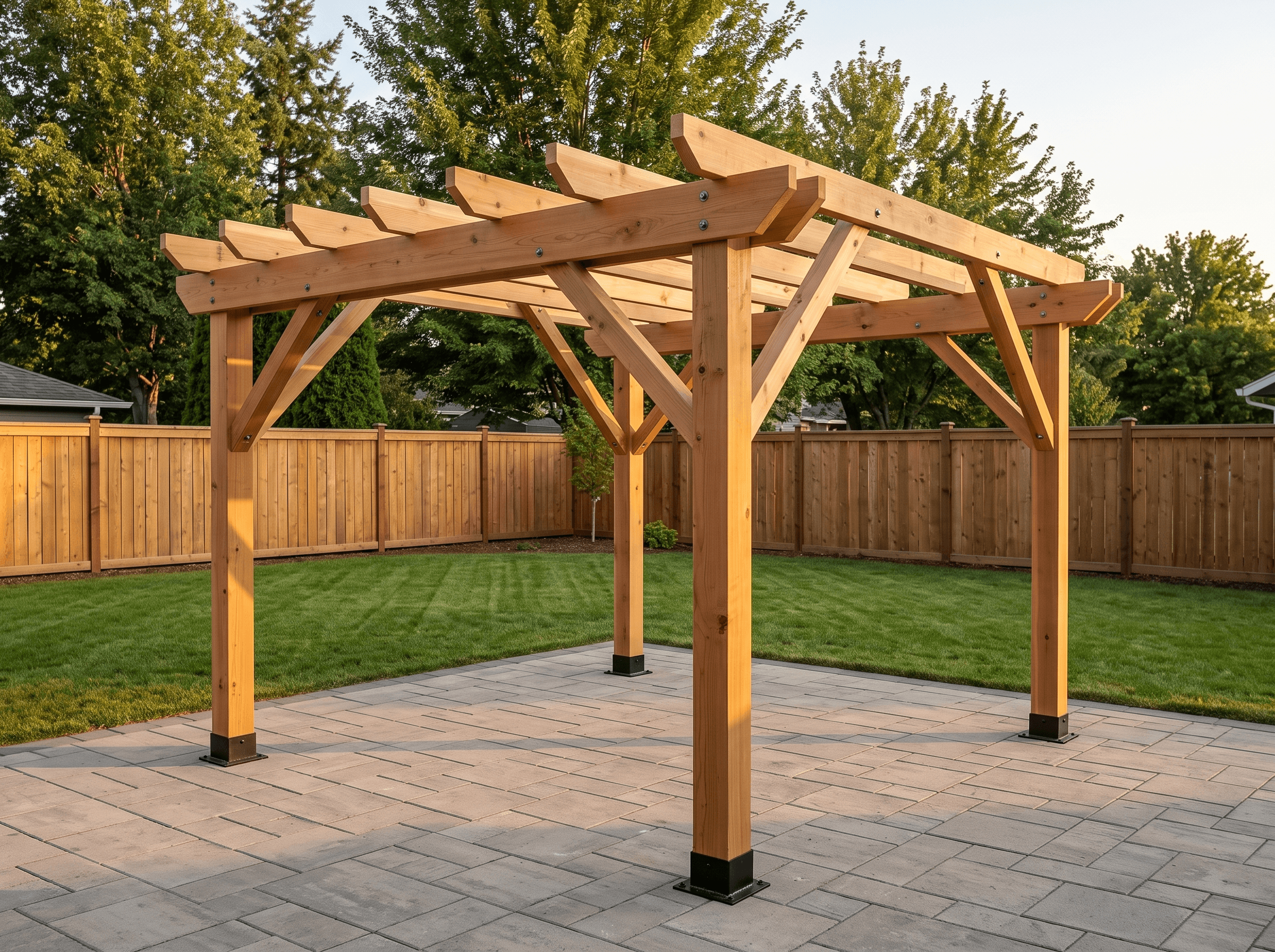

10×10 Freestanding Pergola
A compact 10×10 open-lattice pergola for a patio or fire pit area — framing drawings, cut list, and materials BOM.
7-day free trial, then $99 once. Framing drawings, cut list, and BOM for this exact pergola.
Covered Area
100 sq ft
Post Layout
10′ × 10′ (post centerlines)
Post Height
8′
Roof Pitch
1/12
Design Wind
115 mph, Exposure B
About This Design
A 10×10 footprint is enough to shade a small patio table or a fire pit circle without crowding the yard around it. Every rafter, post, and knee brace on this open-lattice plan is sized by the same engineering ruleset (ADR 027) that backs our attached pergolas — nothing here is a scaled-down approximation.
Set it on a poured slab or an existing pad and there is no wall framing at all: just posts, beams, and rafters, ready for a trained vine or a string of lights.
Key Features
- 10×10 open-lattice roof on 6×6 posts
- Rafter tails and knee braces sized by the pergola engineering ruleset (ADR 027)
- Surface post foundation on a poured slab or existing pad
- Full cut list and materials BOM through the same framing engine as every plan
Build Notes
Set posts on a poured slab or an existing pad, then run the beams and rafters per the framing drawings. Knee braces at each post-to-beam joint are part of the load path, not decoration — do not omit them.
The BOM covers posts, beams, rafters, and hardware. Concrete for the pad is priced separately or supplied by others.
Best For
Right-sized for shading a patio, deck, or outdoor dining area. Want a solid roof instead of open lattice? See our carport plans.
Engineering Notes
The framing engine checks this pergola's posts, knee braces, footings and roof uplift at 115 mph, Exposure B — the ASCE 7 basic wind speed across most of the interior United States. It is not a stamped design: a higher wind zone, an open or coastal site, or a jurisdiction that asks for sealed drawings needs a local engineer to review it.
Interactive 3D Preview
Loading 3D preview…
Frequently Asked Questions
How much does a 10×10 pergola cost to build?
The materials estimate on this page is computed live from the plan's BOM: posts, beams, rafters and hardware. Concrete, footings by others, and any electrical are accessories outside the BOM.
Do I need a permit for a 10×10 pergola?
Freestanding accessory structures are frequently exempt below a jurisdiction's square-footage threshold, but setback and height rules still apply. Confirm with your local building department before building.
What materials are included in the 10×10 pergola plans?
The plans include framing drawings with a cut list and a materials BOM covering the posts, beams, rafters, purlins, fasteners and hardware, plus the interactive 3D preview. A freestanding pergola does not come with the multi-sheet printable permit plan set — that set draws a building's walls and foundation, which a pergola has none of. Bring the framing drawings to your building department if your jurisdiction requires a permit.
