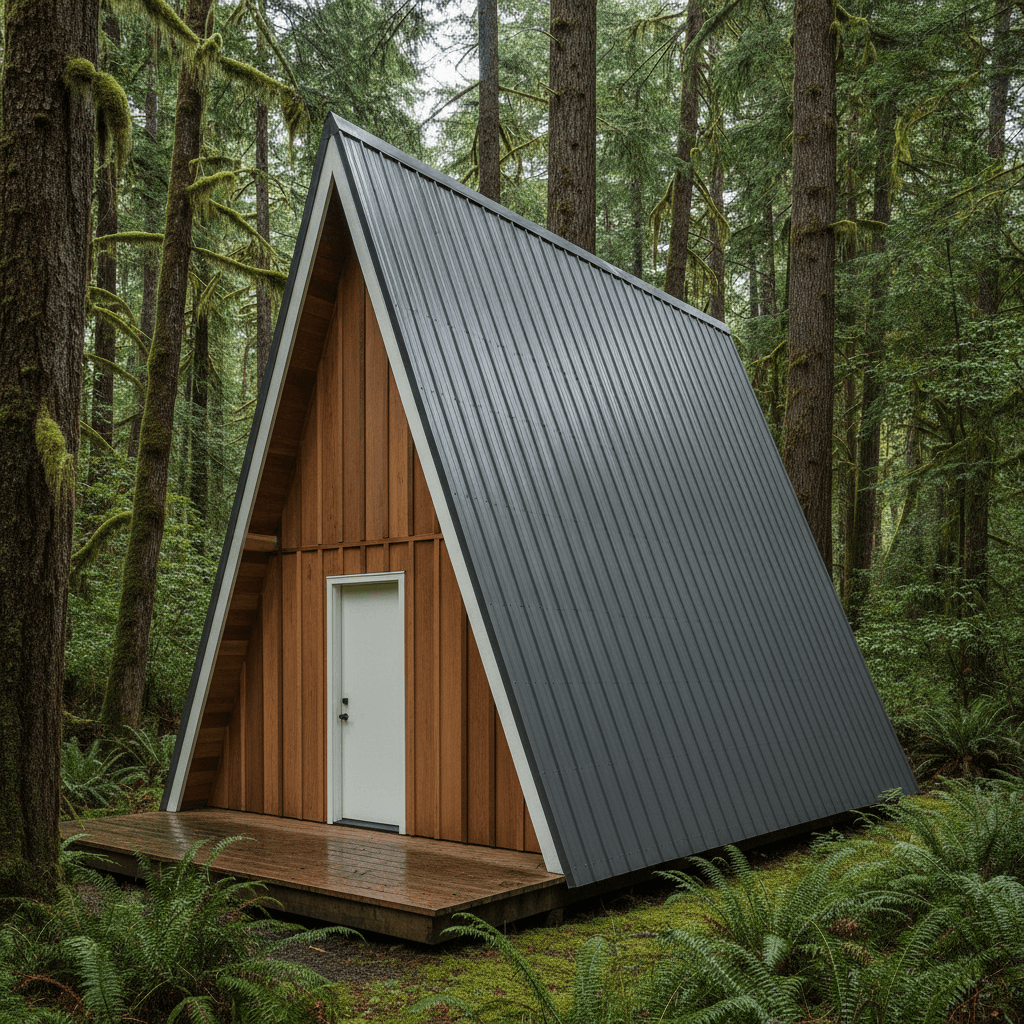

16×24 A-Frame Cabin Plans with Loft

About This Design

The same sixteen-foot triangle as the 16×20, run four feet longer — and that is exactly the four feet that makes a loft worth building. A ten-foot platform at the north end leaves fourteen feet of open room under the full ridge, which is the proportion that keeps an A-frame from feeling like a corridor with a bed in it.

Width is what the loft costs you, not length. At sixteen feet the platform is generous enough to sleep two across, and the ridge is high enough above it to sit up under. Go narrower and the loft becomes a shelf; this is the smallest width in the catalog where it is a room.

Below it: three hundred and eighty-four square feet on the main level, roof planes running clean to the deck on both sides, and no side walls anywhere in the building.

Key Features

• True roof-to-deck A-frame — no knee walls, no side walls
• 384 sq ft on the main level plus a 10-foot loft
• Sixteen feet across: a loft you sleep in, not a shelf
• Full-height 36×80 entry centred under the peak
• Fourteen feet of open room under the full ridge height
• Ridge beam, entry header and posts sized PRELIMINARY against the site loads

Build Notes

Read the load path before you cut anything, because it is not the one most A-frame articles describe. A bolted heel joint cannot make its required end distance in a tie this shallow, so these plans do NOT rely on the floor frame acting as a rafter tie. The rafters land on a structural ridge beam, and that beam delivers its load through a built-up post at each gable end to bearing below.

The entry sits on the centreline, under the peak, so the front post lands on an engineered LVL header over the door and a jack pack each side carries it down. Once a jurisdiction is set, the engine sizes that whole chain — beam, header, jambs, post, and the transfer beam or slab pad under it — against the pinned site loads and prints each member with its utilisation ratio. Every one of those sizes is PRELIMINARY: a registered design professional confirms them, and the set says so on every sheet until one does.

Build the deck dead square first: the rafters reference off it directly and there is no top plate to correct an error with. Set the beam and its posts, then bring the rafter pairs up from both gable ends toward the middle.

Best For

The size most people mean when they say A-frame cabin. Nearly four hundred square feet below with the loft above it sleeps a family for a weekend without anybody stepping over anybody. The long axis gives you a natural split — living at the open end under the full height, kitchen and stair tucked under the loft — which is the layout that makes the form work as a place to stay rather than a place to look at.
