18×24 A-Frame Cabin Plans with Loft

About This Design

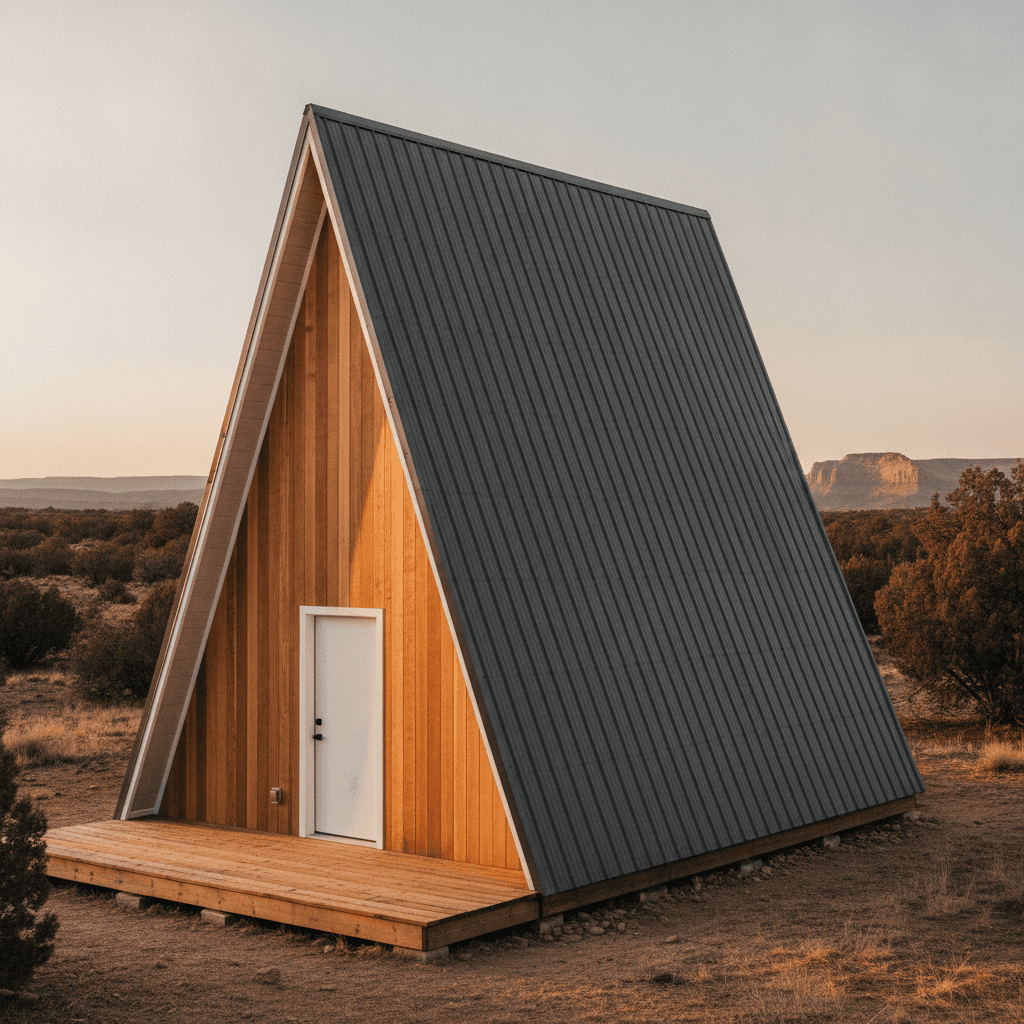

This is the classic — the one where the roof runs all the way to the deck and there are no side walls at all. It is the form everyone pictures, and it is also the form that only works above a certain width. Below about sixteen feet the triangle pinches so hard that the floor is mostly unusable; at eighteen feet it is a room.

What you get is an uninterrupted A from ground to peak, four hundred and thirty-two square feet of main floor, and an eight-foot loft under the ridge with headroom to sit up in comfortably. The door sits on the centreline, full height, with the ridge post landing on an engineered header above it — the detail that keeps the entry where the headroom is on a true roof-to-deck A-frame.

The drawings carry the whole thing: rafter pairs, the structural ridge beam they land on, the header and jambs under the front post, the built-up post at the back, and the loft framing above.

Key Features

• True roof-to-deck A-frame — no knee walls, no side walls
• Eighteen feet wide: usable floor either side of the centreline
• 432 sq ft on the main level plus an eight-foot loft
• Full-height 36×80 entry centred under the peak
• Ridge beam, entry header and posts sized PRELIMINARY against the site loads
• The widest classic in the catalog

Build Notes

Read the load path before you cut anything, because it is not the one most A-frame articles describe. A bolted heel joint cannot make its required end distance in a tie this shallow, so these plans do NOT rely on the floor frame acting as a rafter tie. The rafters land on a structural ridge beam, and that beam delivers its load through a built-up post at each gable end to bearing below.

The entry sits on the centreline, under the peak, so the front post lands on an engineered LVL header over the door and a jack pack each side carries it down. Once a jurisdiction is set, the engine sizes that whole chain — beam, header, jambs, post, and the transfer beam or slab pad under it — against the pinned site loads and prints each member with its utilisation ratio. Every one of those sizes is PRELIMINARY: a registered design professional confirms them, and the set says so on every sheet until one does.

Build the deck dead square first: the rafters reference off it directly and there is no top plate to correct an error with. Set the beam and its posts, then bring the rafter pairs up from both gable ends toward the middle.

Best For

The cabin you build when the look is the reason. Four hundred square feet is enough for a proper main room with the stove at one end and the kitchen at the other, and the loft sleeps two or three well clear of it. The uninterrupted roof planes shed snow better than anything else in this catalog, which is why the form persists in mountain and lake country where the ploughing matters more than the wall space.
